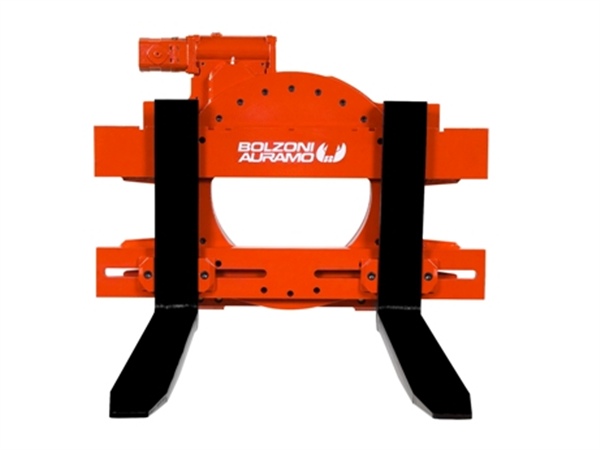

360° Rotation – RC
- 360-degree rotator with ISO-2328 fork carriage for all applications requiring rotation. Commonly usedin industries where the working cycles require rotation or emptying of boxes or containers.
- Fast and high-torque rotation.
- Continuous rotation both ways.
- Open centre design, and minimized overall dimensions, ensure excellent visibility.
- Motor-gear box on the right (driver side) provides optimal visibility
- Double scraper to protect the bearing.
Technical Data
RC
| RC 15 10A | 1500 | 500 | 980 | 167 | 74 | 142 | 722 | 618 | 4,4 | 2 |
| RC 20 10A | 2000 | 500 | 980 | 170 | 76 | 142 | 722 | 618 | 4,4 | 2 |
| RC 25 10A | 2500 | 500 | 980 | 183 | 76 | 142 | 744 | 837 | 4 | 2 |
| RC 35 11B | 3500 | 500 | 1150 | 307 | 83 | 159 | 860 | 1227 | 5,4 | 3 |
| RC 40 11B | 4000 | 500 | 1150 | 312 | 91 | 159 | 860 | 1227 | 5,4 | 3 |
| RC 45 15B | 4500 | 500 | 1550 | 365 | 85 | 159 | 860 | 1227 | 5,4 | 3 |
| RC 55 17C | 5500 | 600 | 1740 | 585 | 103 | 186 | 1117 | 2023 | 3,2 | 4 |
| FG 70 17 C | 7000 | 600 | 1740 | 770 | 115 | 186 | 1056 | 1500 | 3,5 | 4 |
| (1) | Rotation speed with max. oil flow rate. |
Rotators are delivered without forks. Original lift truck forks can be used witout any modification. Forks are available on request, please consult Bolzoni Auramo. The lower hooks at the forks must be capable of carrying the rotators rated capacity.
Mountings: Standard mounting according to ISO 2328.
(rpm) Rotation speed DC
For lift trucks with a very low oil flow it is advisable to fit a double pilot check valve to the motor unit inlet.
Maximum operating pressure: See the enclosed table.
If the lift truck connection pressure exceeds the maximum operating pressure, separate pressure relief valves are required.
