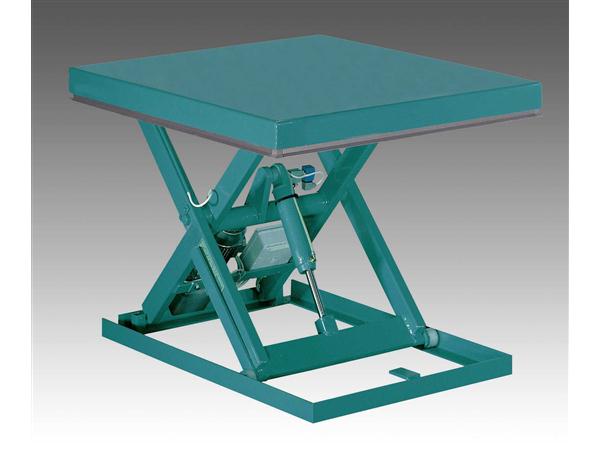

Single Scissor Lift Table – Type 1E
- Designed as a “work station" to provide improved ergonomic conditions to ensure the health, safety and comfort of the operator together with improved productivity
- Load applied: evenly distributed
- Top platform smooth surface
- Max. 20 cycles per hour, one shift a day
- Single acting hydraulic cylinders with drainage
- Self lubricating bushings on pivot points
- Hydraulic power pack inside the table provided with relief valve against overloading and compensated flow valve for controlled lowering speed
- Electric equipment controlled by electronic system, with transformer and thermal protection
- Wide range of accessories available to achieve even higher safety
- functions in certain conditions.
Technical Data
Ergo-Lift 1E
| A1.05.E000 | 500 | 590 | 1000X800 | 200 | 0,55 | 1 | 60 |
| A1.05.E010 | 500 | 800 | 1250X800 | 200 | 0,55 | 1 | 60 |
| A1.05.E020 | 500 | 800 | 1250X1000 | 200 | 0,55 | 1 | 60 |
| A1.05.E030 | 500 | 1000 | 1500X800 | 220 | 0,55 | 1 | 60 |
| A1.05.E040 | 500 | 1000 | 1500X1000 | 220 | 0,55 | 1 | 60 |
| A1.05.E050 | 500 | 1200 | 1800X800 | 240 | 0,75 | 1 | 60 |
| A1.05.E060 | 500 | 1200 | 1800X1000 | 240 | 0,75 | 1 | 60 |
| A1.10.E000 | 1000 | 590 | 1000X800 | 200 | 0,55 | 2 | 60 |
| A1.10.E010 | 1000 | 800 | 1250X800 | 200 | 0,55 | 2 | 60 |
| A1.10.E020 | 1000 | 800 | 1250X1000 | 200 | 0,55 | 2 | 60 |
| A1.10.E030 | 1000 | 1000 | 1500X800 | 220 | 0,55 | 2 | 60 |
| A1.10.E040 | 1000 | 1000 | 1500X1000 | 220 | 0,55 | 2 | 60 |
| A1.10.E050 | 1000 | 1200 | 1800X800 | 240 | 0,75 | 2 | 60 |
| A1.10.E060 | 1000 | 1200 | 1800X1000 | 240 | 0,75 | 2 | 60 |
| A1.10.E070 | 1000 | 1600 | 2250 X 800 | 280 | 1,1 | 2 | 70 |
| A1.10.E080 | 1000 | 1600 | 2250 x 1000 | 280 | 1,1 | 2 | 70 |
| A1.15.E010 | 1500 | 800 | 1350X800 | 250 | 0,75 | 1 | 90 |
| A1.15.E020 | 1500 | 800 | 1350X1000 | 250 | 0,75 | 1 | 90 |
| A1.15.E030 | 1500 | 950 | 1500X800 | 260 | 0,75 | 1 | 90 |
| A1.15.E040 | 1500 | 950 | 1500X1000 | 260 | 0,75 | 1 | 90 |
| A1.15.E050 | 1500 | 1200 | 1800X800 | 270 | 1,1 | 1 | 90 |
| A1.15.E060 | 1500 | 1200 | 1800X1000 | 270 | 1,1 | 1 | 90 |
| A1.20.E010 | 2000 | 800 | 1350X800 | 250 | 1,1 | 1 | 110 |
| A1.20.E020 | 2000 | 800 | 1350X1000 | 250 | 1,1 | 1 | 110 |
| A1.20.E030 | 2000 | 950 | 1500X800 | 260 | 1,1 | 1 | 110 |
| A1.20.E040 | 2000 | 950 | 1500X1000 | 260 | 1,1 | 1 | 110 |
| A1.20.E050 | 2000 | 1200 | 1800X800 | 270 | 1,1 | 1 | 110 |
| A1.20.E060 | 2000 | 1200 | 1800X1000 | 270 | 1,1 | 1 | 110 |
