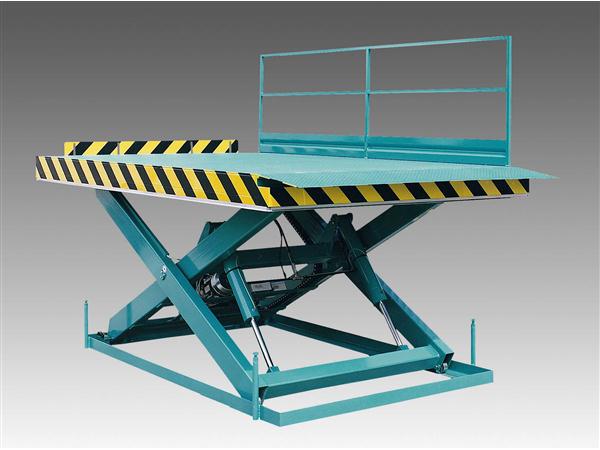

Loading Bay Lift Table 1S
- Used to load and unload vehicles by pedestrian or fork lift trucks without a loading deck
- Designed to operate with maximum safety for off-centred crossing loads
- Safety tread top platform surface
- Max. 15 cycles per hour, one shift a day
- Upper limit switch
- Check valve on each cylinder for higher stability
- Self lubricating bushings on pivot points
- Hydraulic power pack inside the table provided with relief valve against overloading and compensated flow valve for controlled lowering speed
- Electric equipment controlled by electronic system, with transformer and thermal protection
- Wide range of option available such us wheel stop, goal post, safety handrails, manual bridge plate.
Technical Data
Serie 1S
| A1 10 0210 | 1000 | 1600 | 2500X1200 | 350 | 1,5 | 1 | 90 |
| A1 10 S120 | 1000 | 2000 | 3000X1500 | 350 | 3 | 2 | 90 |
| A1 10 S130 | 1000 | 2000 | 3000X2000 | 350 | 3 | 2 | 90 |
| A1 20 S110 | 2000 | 1600 | 2500X1500 | 350 | 3 | 2 | 90 |
| A1 20 S120 | 2000 | 1600 | 2500X2000 | 350 | 3 | 2 | 90 |
| A1 20 S130 | 2000 | 2000 | 3000X1500 | 350 | 3 | 2 | 90 |
| A1 20 S140 | 2000 | 2000 | 3000X2000 | 350 | 3 | 2 | 90 |
| A1 20 S150 | 2000 | 2000 | 3500X2000 | 350 | 3 | 2 | 90 |
| A1 30 S110 | 3000 | 1600 | 2500X1500 | 380 | 3 | 2 | 90 |
| A1 30 S120 | 3000 | 1600 | 2500X2000 | 380 | 3 | 2 | 90 |
| A1 30 S130 | 3000 | 2000 | 3000X1500 | 380 | 4 | 2 | 110 |
| A1 30 S140 | 3000 | 2000 | 3000X2000 | 380 | 4 | 2 | 110 |
| A1 30 S150 | 3000 | 2000 | 3500X2000 | 400 | 4 | 2 | 110 |
Loading Lift TablesType 1SSingle scissor lift tablefor loading by pedestrian truck
