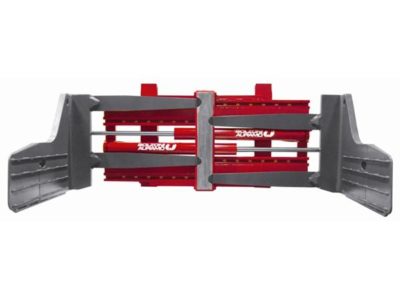

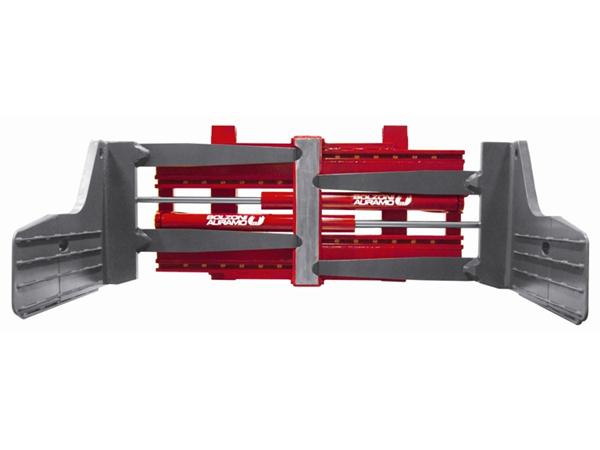

Pulp Bale Clamps – BA-100P
- Heavy duty pulp bale clamp for handling of 4 units.
- Colourless arms welded directly to the arm carriers. Left arm pivoted.
- Slim and strong arm design ensures easy knifing and tight stacking.
Technical Data
BA-100P
BA-100P | 10000 | 800 | 730-3260 | 1400 | 450 | 2400 | 1125 | 3200 | 280 | 290 | (1) | (1) |
BA-100P – B | 10000 | 800 | 730-3260 | 1600 | 450 | 2400 | 1125 | 3320 | 315 | 290 | (1) | (1) |
BA-100PL | 10000 | 800 | 730-3660 | 1400 | 450 | 2800 | 1125 | 3430 | 260 | 290 | (1) | (1) |
BA-100PL – B | 10000 | 800 | 730-3660 | 1600 | 450 | 2800 | 1125 | 3550 | 300 | 290 | (1) | (1) |
BA-100PLS | 10000 | 800 | 730-4060 | 1400 | 450 | 3200 | 1125 | 3660 | 250 | 290 | (1) | (1) |
BA-100PLS – B | 10000 | 800 | 730-4060 | 1600 | 450 | 3200 | 1125 | 3780 | 285 | 290 | (1) | (1) |
BA-100PLT | 10000 | 800 | 1100-4900 | 1400 | 450 | 3600 | 1125 | 3820 | 240 | 290 | (1) | (1) |
BA-100PLT – B | 10000 | 800 | 1100-4900 | 1600 | 450 | 3600 | 1125 | 3940 | 270 | 290 | (1) | (1) |
(1) | Consult Bolzoni Auramo regarding factory specifications. |
Two hydraulic functions.
Special opening ranges, arm lengths and arm finishes on request.
External sideshift available. Independent arm movement.
Center arm.
