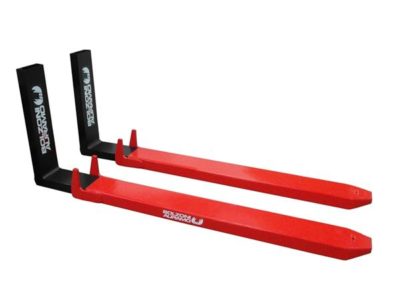

Reach Forks
- Hydraulic reach forks.
- For loading and unloading of vehicles from one side.
- For handling pallets in double deep racking.
- Two pallets at a time can be handled.
- Pallets of different sizes can be handled.
- Integral cylinders, the length of forks can be changed from the driver’s seat.
Technical Data
RS-RD
Models for loads in double depth. | ||||||||||
RS20E0A – 1100 | 2000/600 | 800/1450 | 1100 | 1850 | 750 | 130 x 57 | 152 | 45 | 395/565 | 2 A |
RS20E0A – 1200 | 2000/600 | 800/1450 | 1200 | 2050 | 850 | 130 x 57 | 161 | 45 | 440/645 | 2 A |
RS20E0A – 1350 | 2000/600 | 650/1750 | 1350 | 2350 | 1000 | 130 x 57 | 175 | 45 | 515/755 | 2 A |
RS25E0A – 1100 | 2500/600 | 1100/1450 | 1100 | 1850 | 750 | 130 x 57 | 152 | 45 | 395/565 | 2 A |
RS25E0A – 1200 | 2500/600 | 1100/1450 | 1200 | 2050 | 850 | 130 x 57 | 161 | 45 | 440/645 | 2 A |
RS25E0A – 1350 | 2500/600 | 900/1750 | 1350 | 2350 | 1000 | 130 x 57 | 175 | 45 | 515/755 | 2 A |
RS35E0B – 1100 | 3500/600 | 1400/1450 | 1100 | 1850 | 750 | 130 x 57 | 162 | 45 | 370/535 | 3 A |
RS35E0B – 1200 | 3500/600 | 1400/1450 | 1200 | 2050 | 850 | 130 x 57 | 171 | 45 | 419/610 | 3 A |
RS35E0B – 1350 | 3500/600 | 1250/1750 | 1350 | 2350 | 1000 | 130 x 57 | 185 | 45 | 490/720 | 3 A |
RS45E0B – 1100 | 4500/600 | 1600/1450 | 1100 | 1850 | 750 | 160 x 57 | 191 | 45 | 370/545 | 3 A |
RS45E0B – 1200 | 4500/600 | 1600/1450 | 1200 | 2050 | 850 | 160 x 57 | 202 | 45 | 415/615 | 3 A |
RS45E0B – 1350 | 4500/600 | 1500/1750 | 1350 | 2350 | 1000 | 160 x 57 | 218 | 45 | 485/730 | 3 A |
Models for two pallets. | ||||||||||
RD20E0A – 0800 | 2000/600 | 2000/600 | 800 | 1200 | 400 | 130 x 57 | 115 | 45 | 315/475 | 2 A |
RD20ENA – 1100 | 2000/600 | 1500/800 | 1100 | 1600 | 500 | 130 x 57 | 147 | 45 | 395/555 | 2 A |
RD20E0A – 1100 | 2000/600 | 1300/925 | 1100 | 1850 | 750 | 130 x 57 | 147 | 45 | 395/565 | 2 A |
RD20E0A – 1200 | 2000/600 | 1200/1025 | 1200 | 2050 | 850 | 130 x 57 | 156 | 45 | 440/645 | 2 A |
RD20E0A – 1350 | 2000/600 | 1100/1175 | 1350 | 2350 | 1000 | 130 x 57 | 170 | 45 | 515/755 | 2 A |
RD25E0A – 1100 | 2500/600 | 1650/925 | 1100 | 1850 | 750 | 130 x 57 | 152 | 45 | 395/565 | 2 A |
RD25E0A – 1200 | 2500/600 | 1500/1025 | 1200 | 2050 | 850 | 130 x 57 | 161 | 45 | 440/645 | 2 A |
RD25E0A – 1350 | 2500/600 | 1300/1175 | 1350 | 2350 | 1000 | 130 x 57 | 175 | 45 | 515/755 | 2 A |
RD35E0B – 0800 | 3500/600 | 3500/600 | 800 | 1200 | 400 | 130 x 57 | 125 | 45 | 305/465 | 3 A |
RD35ENB – 1100 | 3500/600 | 2600/800 | 1100 | 1600 | 500 | 130 x 57 | 157 | 45 | 370/525 | 3 A |
RD35E0B – 1100 | 3500/600 | 2300/925 | 1100 | 1850 | 750 | 130 x 57 | 157 | 45 | 370/535 | 3 A |
RD35E0B – 1200 | 3500/600 | 2100/1025 | 1200 | 2050 | 850 | 130 x 57 | 166 | 45 | 419/610 | 3 A |
RD35E0B – 1350 | 3500/600 | 1800/1175 | 1350 | 2350 | 1000 | 130 x 57 | 180 | 45 | 490/720 | 3 A |
RD45E0B – 1100 | 4500/600 | 2900/925 | 1100 | 1850 | 750 | 160 x 57 | 186 | 45 | 370/545 | 3 A |
RD45E0B – 1200 | 4500/600 | 2600/1025 | 1200 | 2050 | 850 | 160 x 57 | 197 | 45 | 415/615 | 3 A |
RD45E0B – 1350 | 4500/600 | 2300/1175 | 1350 | 2350 | 1000 | 160 x 57 | 213 | 45 | 485/730 | 3 A |
Notes:
- One hydraulic function.
- Q = Capacity when closed.
- Q¹= Capacity at maximum extension.
- Models RS/RD 20 are equipped with cylinders having different diameters for synchronized fork movement.
- Models RS/RD 35 and 45 are equipped with a flow divider valve for synchronized fork movement.
On request:
- Different strokes.
- Different dimensions.
- Load backrest.
- Special pallet stop thickness 150 mm, see above picture.
