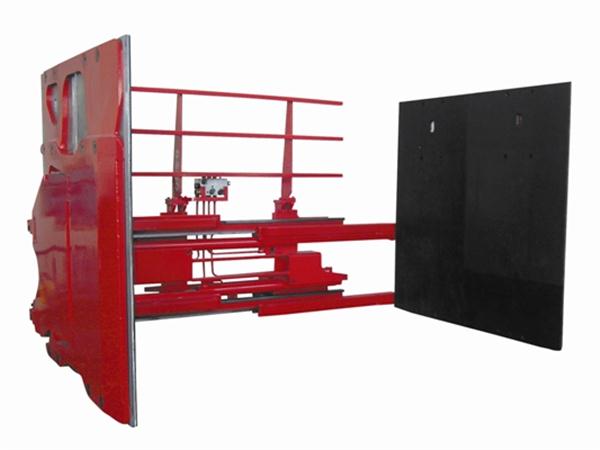

Side Shifting Carton & Appliances Clamp
The Bolzoni Auramo carton clamps are extensively used for the handling of “white goods”, in both factories and warehouses, such as washing machines, refrigerators, microwave ovens, televisions and for the handling of other types of materials packed in cartons.Thanks to the palletless handling, the carton clamp allows the optimization of warehouse storage space and reduction of the costs for packaging materials.
- Very rigid frame structure with single piece double “T” profile. Wide visibility window thanks to new chassis design, granting safe and easy handling operations.
- Large surface alluminium pads to reduce the total weight of the clamp and to maximize the residual capacity of the lift truck.
- Special high-friction vulcanized rubber lining increases positive grip allowing safe and damage-free handling.
- Interchangeable left-right pads for more even rubber wear.
- Thin arm profiles and new design elbow supports allow easy knifing between loads.
- Pad supports with robust design and varying height for an optimized distribution of the clamping force.
- New fixing system of the sliding pads to relief stress.
- New self-aligning cylinder fixing to avoid breakage.
- Integral sideshift.
- Flow divider.
Technical Data
KS-C
KS09Z4A | 39-162 | 900 | 540 | 390-1620 | 1070X1220X57 | 615 | 1050 | 690 | 625 | 701 | 481 | 407 | 145 | 370 | 200 | 29 | II |
KS09Z5A | 39-162 | 900 | 610 | 390-1620 | 1220X1220X57 | 615 | 1050 | 690 | 625 | 755 | 519 | 415 | 145 | 370 | 200 | 29 | II |
KS09Z6A | 38-161 | 900 | 660 | 380-1610 | 1320X1220X57 | 615 | 1050 | 690 | 625 | 787 | 558 | 421 | 145 | 370 | 200 | 29 | II |
KS09Z4A | 50-184 | 900 | 540 | 500-1840 | 1070X1220X57 | 670 | 1050 | 690 | 625 | 707 | 481 | 407 | 145 | 370 | 200 | 29 | II |
KS09Z5A | 50-184 | 900 | 610 | 500-1840 | 1220X1220X57 | 670 | 1050 | 690 | 625 | 760 | 519 | 415 | 145 | 370 | 200 | 29 | II |
KS09Z6A | 49-183 | 900 | 660 | 490-1830 | 1320X1220X57 | 670 | 1050 | 690 | 625 | 793 | 558 | 421 | 145 | 370 | 200 | 29 | II |
KS09Z4A | 59-195 | 900 | 540 | 590-1950 | 1070X1220X57 | 680 | 1020 | 690 | 625 | 707 | 481 | 407 | 145 | 370 | 200 | 29 | II |
KS09Z5A | 59-195 | 900 | 610 | 590-1950 | 1220X1220X57 | 680 | 1020 | 690 | 625 | 760 | 519 | 415 | 145 | 370 | 200 | 29 | II |
KS09Z6A | 58-194 | 900 | 660 | 580-1940 | 1320X1220X57 | 680 | 1020 | 690 | 625 | 793 | 558 | 421 | 145 | 370 | 200 | 29 | II |
KS09Z5A | 52-228 | 900 | 610 | 520-2280 | 1220X1220X57 | 880 | 1450 | 690 | 625 | 795 | 506 | 417 | 145 | 370 | 200 | 29 | II |
KS09Z6A | 51-227 | 900 | 660 | 510-2270 | 1320X1220X57 | 880 | 1450 | 690 | 625 | 829 | 546 | 427 | 145 | 370 | 200 | 29 | II |
KS12Z5A | 56-199 | 1200 | 610 | 560-1990 | 1220X1220X57 | 730 | 1100 | 690 | 625 | 831 | 512 | 422 | 146 | 369 | 195 | 29 | II |
KS12Z6A | 55-198 | 1200 | 660 | 550-1980 | 1320X1220X57 | 730 | 1080 | 690 | 625 | 864 | 552 | 432 | 146 | 369 | 195 | 29 | II |
KS14Z6A | 55-198 | 1400 | 660 | 550-1980 | 1320X1220X57 | 730 | 1080 | 690 | 625 | 864 | 552 | 432 | 146 | 369 | 195 | 29 | II |
KS14Z7A | 54-197 | 1400 | 690 | 540-1970 | 1370X1220X57 | 730 | 1080 | 690 | 625 | 887 | 573 | 437 | 146 | 369 | 195 | 29 | II |
KS16Z7A | 54-197 | 1600 | 690 | 540-1970 | 1370X1220X57 | 730 | 1080 | 690 | 625 | 887 | 573 | 437 | 146 | 369 | 195 | 29 | II |
KS16Z8A | 54-197 | 1600 | 690 | 540-1970 | 1370X1370X57 | 730 | 1080 | 690 | 625 | 923 | 590 | 449 | 146 | 369 | 195 | 29 | II |
KS16Z7A | 55-228 | 1600 | 690 | 550-2280 | 1370X1220X57 | 865 | 1370 | 690 | 625 | 887 | 573 | 437 | 146 | 369 | 195 | 29 | II |
KS16Z8A | 55-228 | 1600 | 690 | 550-2280 | 1370X1370X57 | 865 | 1370 | 690 | 625 | 923 | 590 | 449 | 146 | 369 | 195 | 29 | II |
Notes:E= arm thickness, including rubber.
