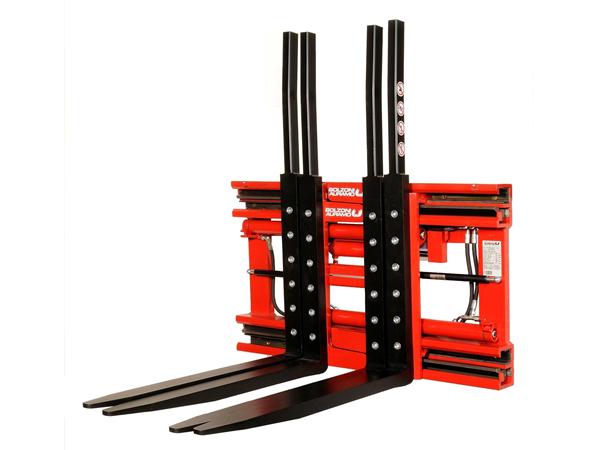

Single/Double Pallet Handler - DA-DS

Single/Double Pallet Handler – DA-DS

Anval S.A.
Empresa:
Empresa:

Descripción

Anval S.A.

ENVIAR EMAIL

  • Single/double pallet handler for handling one or two pallets.
  • These models offer the possibility to lift pallets on both sides, either singly or two at a time.
  • Excellent visibility through the body.
  • separate sideshift provides constant sideshift fance regardless of the fork opening (mode DS)
  • Synchronized fork movement with flow divider valve.
  • Self-lubricating polyamide sideshift bearing pads.
  • Bolt-on forks with specially reinforced heel area.
Non-sideshifting
DA18FKA 1800 600 550 550 – 1930 1150x80x50 1200 690 1350 563 254 188 208 2 A
DA22FKA 2200 600 550 550 – 1930 1150x80x50 1200 690 1350 563 254 188 208 2 A
DA25FKB 2500 600 570 550 – 1930 1150x80x50 1200 650 1350 585 212 268 208 3 A
DA28FKB 2800 600 570 550 – 1930 1150x80x50 1200 650 1350 585 212 268 208 3 A
DA35FKB 3500 600 570 550 – 1930 1150x80x60 1200 650 1350 635 215 274 218 3 A
Sideshifting
DS18FKA 1800 600 550 550 – 1930 1150x80x50 1200 810 1350 570 287 184 228 2 A
DS22FKA 2200 600 550 550 – 1930 1150x80x50 1200 810 1350 570 287 184 228 2 A
DS25FKB 2500 600 570 550 – 1930 1150x80x50 1200 900 1350 605 228 262 228 3 A
DS28FKB 2800 600 570 550 – 1930 1150x80x50 1200 900 1350 605 228 262 228 3 A
DS35FKB 3500 600 570 550 – 1930 1150x80x60 1200 900 1350 655 231 268 238 3 A

Más información sobre este producto consulte en: http://www.bolzoni-auramo.com/Attrezzature-per-carrelli/Pinze-pallet-multipli/Pinza-per-la-presa-di-1-o-2-pallet/Pinza-per-la-presa-di-1-o-2-pallet/index.aspx?m=124&f=2&idv=1&idc=50&id=68
