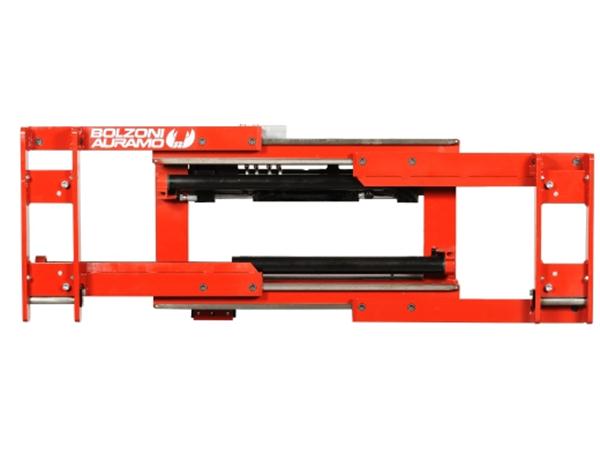

- Series KB and KS fork positioners are based on a clamp frame, which allows the fork lift operator to position the forks beyond the original width of the forklift carriage.
- Safe handling of small, medium and extra-large loads.
- Series KB – Non-sideshifting.
- Series KS – Separate sideshift.
- Synchronized fork movement.
- ISO 2328 fork carriers. Possibility to use the standard forks of the lift truck.
- All standard models designed to handler Europallets from side 800 mm.
- Excellent visibility
| Non-sideshifting | |||||||||||||||
| KB14YKA | 1400 | 500 | 560-1680 | 930 | 629 | 190 | 71 | 323 | 157 | 80-100-120 | 690 | 190 | 337 | 24 | 2 |
| KB20YKA | 2000 | 500 | 560-1680 | 930 | 629 | 190 | 71 | 323 | 157 | 80-100-120 | 690 | 190 | 337 | 24 | 2 |
| KB25YKA | 2500 | 500 | 560-1680 | 930 | 627 | 193 | 75 | 322 | 164 | 80-100-120 | 690 | 185 | 336 | 25 | 2 |
| KB28YKB | 2800 | 500 | 560-1720 | 970 | 733 | 233 | 86 | 381 | 182 | 100-120-150 | 690 | 277 | 428 | 18 | 3 |
| KB38YKB | 3800 | 500 | 560-1950 | 1200 | 733 | 279 | 70 | 368 | 182 | 100-120-150 | 690 | 277 | 428 | 18 | 3 |
| KB50YKB | 4900 | 500 | 560-1810 | 1150 | 715 | 434 | 140 | 249 | 207 | 130-150 | 950 | 210 | 230 | 20 | 3 |
| KB50YKC | 5000 | 600 | 560-1810 | 1150 | 920 | 520 | 97 | 249 | 218 | 150-200 | 1005 | 210 | 230 | 20 | 4 |
| Sideshifting | |||||||||||||||
| KS14YKA | 1400 | 500 | 560-1680 | 930 | 629 | 200 | 93 | 322 | 189 | 80-100-120 | 920 | 190 | 337 | 24 | 2 |
| KS20YKA | 2000 | 500 | 560-1680 | 930 | 629 | 200 | 93 | 322 | 189 | 80-100-120 | 920 | 190 | 337 | 24 | 2 |
| KS25YKA | 2500 | 500 | 560-1680 | 930 | 627 | 212 | 98 | 320 | 196 | 80-100-120 | 920 | 185 | 336 | 25 | 2 |
| KS28YKB | 2800 | 500 | 560-1720 | 970 | 733 | 268 | 113 | 373 | 224 | 100-120-150 | 970 | 277 | 428 | 18 | 3 |
| KS38YKB | 3800 | 500 | 560-1950 | 1200 | 733 | 320 | 112 | 368 | 224 | 100-120-150 | 970 | 277 | 428 | 18 | 3 |
| KS50YKB | 4900 | 500 | 560-1810 | 1150 | 715 | 500 | 130 | 282 | 250 | 130-150 | 1000 | 210 | 230 | 20 | 3 |
| KS50YKC | 5000 | 600 | 560-1810 | 1150 | 920 | 610 | 118 | 282 | 260 | 150-200 | 1200 | 210 | 230 | 20 | 4 |
| (1) | For other fork carrier and fork widths, please consult Bolzoni Auramo. |
