TE300

TE300

The TE300 is a hydraulic rotary percussion drill available with multiple configurations. It can be used to drill holes from 1 3/8" to 3" in diameter. It has a sealed chuck end that keeps debris and flushing water out of the drill while sealing in the lubrication. The TE300 has large accumulators to control hydraulic shock mounted on the side of the cylinder for easy service. The hammer runs in special metal-alloyed bushings for extended service life and the bushings are double-sealed at both ends to protect the hydraulic system from contamination. Large diameter porting between the valve and cylinder block reduce friction and pressure loss.

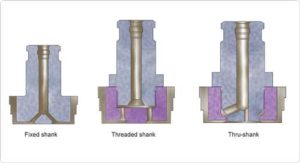

TE300 is available with the following shank adaptors:

• 1.00", 1.25", 1.50" rope thread
• T38
• Ischebeck Titan 30mm and 40mm

The following flushing options are available with the TE300:

• Blow tube through the piston
• Water/air swivel, replaces end-cap
• Grout swivel separate from the drill to keep grout from entering the rotation housing

The TE300 is available with single or dual motor drive.
