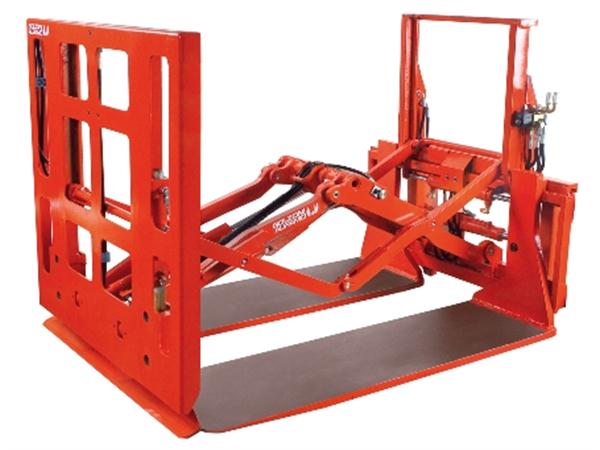

Dedicated Push Pull
- Proven, dependable, rugged push linkage.
- Tilting push plate and quick-change hooks included.
- Strong, lightweight steel standard.
- Pushing plate and griper jaw with larger window to improve visibility.
- Limited weight and lost load to maximize lift truck residual capacity.
Technical Data
Dedicated
| Dedicated Push Pulls – Non-Sideshifting with Adjustable Platens, 1 Function | ||||||||||
| PANH035A1548 | 1600 | 600 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 292 | 210 | 518 |
| PANH045A1548 | 2000 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 295 | 215 | 520 | |
| Dedicated Push Pulls – Sideshifting with Adjustable Platens, 2 Functions | ||||||||||
| PASH035A1548 | 1600 | 600 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 291 | 209 | 520 |
| PASH045A1548 | 2000 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 294 | 214 | 522 | |
| Dedicated Push Pulls – Non-Sideshifting w/Hydraulically Adjustable Platens, 2 Functions (includes single solenoid valve)(1) | ||||||||||
| PHNH035A1548 | 1600 | 600 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 288 | 211 | 531 |
| PHNH045A1548 | 2000 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 297 | 216 | 533 | |
| Dedicated Push Pulls – Sideshifting w/Hydraulically Adjustable Platens, 3 Functions (includes single solenoid valve)(1) | ||||||||||
| PHSH035A1548 | 1600 | 600 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 287 | 209 | 534 |
| PHSH045A1548 | 2000 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 290 | 214 | 536 | |
| Dedicated Load Push – Non-Sideshifting with Adjustable Platens, 1 Function | ||||||||||
| PLNH035A1548 | 1600 | 600 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 295 | 206 | 473 |
| PLNH045A1548 | 2000 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 297 | 208 | 478 | |
| Dedicated Load Push – Sideshifting with Adjustable Platens, 2 Functions | ||||||||||
| PLSH035A1548 | 1600 | 600 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 292 | 206 | 478 |
| PLSH045A1548 | 2000 | 380 X 1200 | 865-1065 | 2 | 1000 X 1010 | 190 | 295 | 208 | 482 | |
