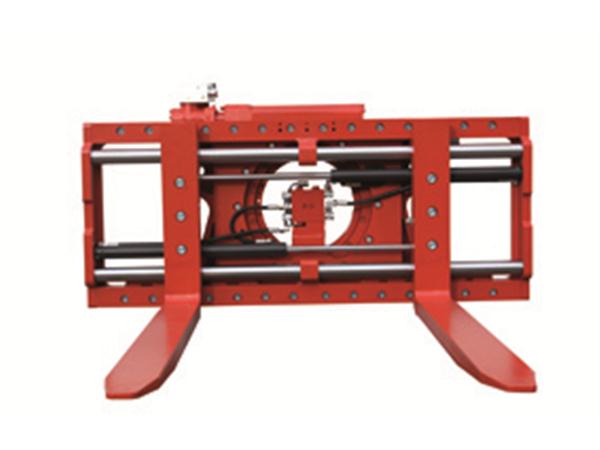

360° Rotating Fork Positioner – RP
- 360° continuous rotation in both directions allows flexibility and discharging of the load to either side of the forklift truck.
- Accurate positioning thanks to the hydraulic adjustment of the forks within the width of the truck. Double shaft guided system sliding on hardened chrome bars.
- Bolt-on forks.
Technical Data
RP
| RP 15 100A | 1500 | 500 | 320 – 910 | 1200 x 120 x 40 | 1000 | 900 | 440 | 213 | 238 | II |
| RP 15 110A | 1500 | 500 | 320 – 1.010 | 1200 x 120 x 40 | 1100 | 900 | 455 | 212 | 238 | II |
| RP 15 120A | 1500 | 500 | 320 – 1.110 | 1200 x 120 x 40 | 1200 | 900 | 470 | 210 | 238 | II |
| RP 22 110A | 2200 | 500 | 320 – 1.010 | 1200 x 120 x 45 | 1100 | 900 | 485 | 235 | 243 | II |
| RP 22 120A | 2200 | 500 | 320 – 1.110 | 1200 x 120 x 45 | 1200 | 900 | 490 | 225 | 243 | II |
| RP 22 130A | 2200 | 500 | 320 – 1.210 | 1200 x 120 x 45 | 1300 | 900 | 495 | 215 | 243 | II |
| RP 35 110B | 3500 | 500 | 320 – 1.010 | 1200 x 120 x 50 | 1100 | 950 | 590 | 218 | 261 | III |
| RP 35 120B | 3500 | 500 | 320 – 1.110 | 1200 x 120 x 50 | 1200 | 950 | 600 | 220 | 261 | III |
| RP 35 130B | 3500 | 500 | 320 – 1.210 | 1200 x 120 x 50 | 1300 | 950 | 610 | 222 | 261 | III |
| RP 40 112B | 4000 | 600 | 360 – 1.010 | 1200 x 140 x 50 | 1120 | 1100 | 790 | 190 | 284 | III |
| RP 40 122B | 4000 | 600 | 360 – 1.110 | 1200 x 140 x 50 | 1220 | 1100 | 800 | 195 | 284 | III |
| RP 40 132B | 4000 | 600 | 360 – 1.210 | 1200 x 140 x 50 | 1320 | 1100 | 810 | 200 | 284 | III |
| RP 40 142B | 4000 | 600 | 360 – 1.310 | 1200 x 140 x 50 | 1420 | 1100 | 820 | 205 | 284 | III |
Standard fittings:Two hydraulic functions.
On request:
- Different fork lengths up to 2400 mm max.
- Separate sideshift.
- Solenoid valve.
- Solenoid valve control kit.
- Quick disconnect lower hooks.
Más información sobre este producto consulte en: http://www.bolzoni-auramo.com/Lift-Truck-Attachments/Fork-positioners/Rotating/index.aspx?m=124&idc=67
