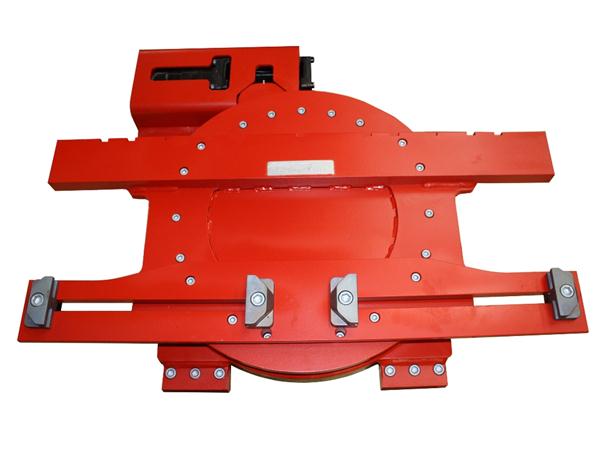

360° Rotation foundry version – RC-F
- Unchanged features of basic rotator, but shows improved features against the heat and the dust of foundries.
- Protection steel plate for motor and hoses in the upper part of the rotator.
- Central steel cover to close the of the unit.
- Special steel protection around the cover, to insulate rubber ring from dirt penetration.
Technical Data
RC-F
| RC 15 10A-F | 1500 | 500 | 980 | 167 | 74 | 722 | 142 | 618 | 4,4 | 2 |
| RC 20 10A-F | 2000 | 500 | 980 | 170 | 76 | 722 | 142 | 618 | 4,4 | 2 |
| RC 25 10A-F | 2500 | 500 | 980 | 183 | 76 | 744 | 142 | 837 | 4 | 2 |
| RC 35 11B-F | 3500 | 500 | 1150 | 307 | 83 | 860 | 159 | 1227 | 5,4 | 3 |
| RC 40 11B-F | 4000 | 500 | 1150 | 312 | 91 | 860 | 159 | 1227 | 5,4 | 3 |
| RC 45 15B-F | 4500 | 500 | 1550 | 365 | 85 | 860 | 159 | 1227 | 5,4 | 3 |
| RC 55 17C-F | 5500 | 600 | 1740 | 585 | 103 | 1117 | 186 | 2023 | 3,2 | 4 |
| FG 70 17 C-F | 7000 | 600 | 1740 | 770 | 115 | 1056 | 186 | 1500 | 3,5 | 4 |
| (1) | Rotation speed with max. oil flow rate. |
Notes:Rotators are delivered without forks. The majority of lift truck forks can be used without any modifications.Forks are available on request, please consult Bolzoni Auramo.The lower hooks of the forks must be capable of carrying the rotators rated capacity.Mountings: Standard mounting according to ISO 2328.One hydraulic function required.Note 1 – Rotation speed with recommended oil flow rate.For lift truck with a very low oil flow it is advisable to fit a doule pilot check valve to the motor unit inlet.If the lift truck connection pressure exceeds the maximum operating pressure, separate pressure relief valves are required.On request:Other fork carriage widths available, please consult Bolzoni Auramo.Separate side shift.Rotation stop at 180° with hydraulic dumper.Side support fork arm.Hydraulic motors with different displacement to vary rotation speed.Special zinc-based painting for application in corrosive environments.
Más información sobre este producto consulte en: http://www.bolzoni-auramo.com/Lift-Truck-Attachments/Rotators/360-Rotation-foundry-version/index.aspx?m=124&idc=62
