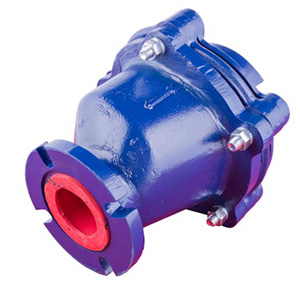

Isogate® CV SNR check valve
Isogate® Check Valves are rubber lined swing check valves used for prevention of reverse flow in abrasive and corrosive flow processes. Our Check Valves are fully lined with natural rubber (Linatex® premium rubber or Linard® rubber) or synthetic rubber and have no internal metal parts exposed to the process flow.
Features / Benefits
- Linatex® premium rubber is the standard wear liner and disc material
- A wide range of natural and synthetic rubber liner and disc materials are also available
- Full bore design with low friction loss and high flow capacity
- Drip tight shut off
- The replaceable moulded rubber liners and disc are held in place by the body fasteners – no adhesives are required
- Robust cast metal bodies
OPTIONS
- End flanges – ANSI 150, DIN PN10/PN16, BS Table D/E
- Rubber liners and Disc materials – Linatex® premium rubber, LINARD® and LINAGARD® natural rubber blends, synthetic rubbers
- Cast grey iron or cast aluminum bodies
File title | File size | Type |
---|---|---|
246 KB |
