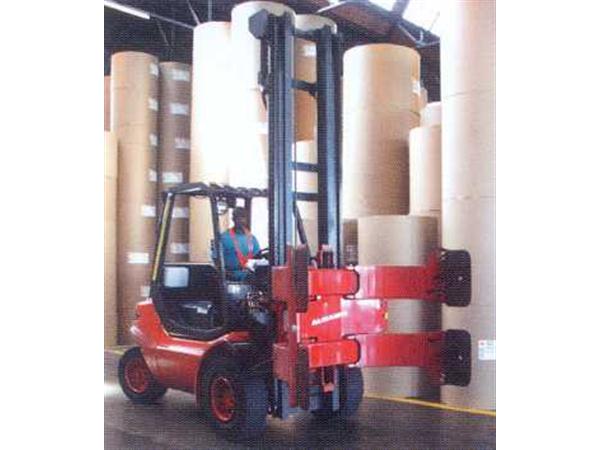

Intelligent – 180° rotation – CTXAR-G3

  • 180-degree rotation paper roll clamp for vertical and horizontal handling of single rolls.
  • Microprocessor control system to control the clamping force. Minimized clamping force prevents paper roll out-of-roundness.
  • Pivoting arm movement. Short and long arms. Several arm and contact pad options in standard series.

Technical Data

CTXAR G3

CTXAR-22RJ-13 2200 650 250-1300 830 625 227 360 180 220×300 200 60 2A/3A
CTXAR-30RJ-13 3000 650 250-1300 1035 780 251 360 190 240×400 200 160 2A/3A
CTXAR-37RJ-16 3700 800 250-1600 1135 985 305 435 190 280×400 300 130 3A/4A
CTXAR-40RJ-16 4000 800 250-1600 1240 1130 310 405 210 280×500 200 205 3/4A
CTXAR-40RJ-13 4600 650 250-1300 1240 1085 290 405 210 280×500 200 205 3/4A
CTXAR-45RJ-13 5000 650 250-1300 1240 1190 245 395 212 280×500 200 220 3A/4A
CTXAR-53RJ-13 5600 650 400-1300 1240 1435 235 520 240 280×500 200 94 4A

Two hydraulic functions. Special roll ranges on request. Consult Bolzoni Auramo for hydraulic pressure and flow rate recommendations.

Standard contact pads: rubber-faced. Contact pad option: steel-sprayed surface. Full length contact pads available.

Note:

For bilge handling, 5-degree forward tilt on upright is required. For 0-degree tilt, special arms are available. Consult Bolzoni Auramo.

Note:

CTXR Series clamps require special installation. Consult Bolzoni Auramo for details. Please note that the CTX clamping force control system is also available for several other Bolzoni Auramo pivot arm paper roll clamp models. Also for jumbo and multiple paper roll clamps. Contact Bolzoni Auramo for more information.
