For Lift Truck Service – 1A-LS

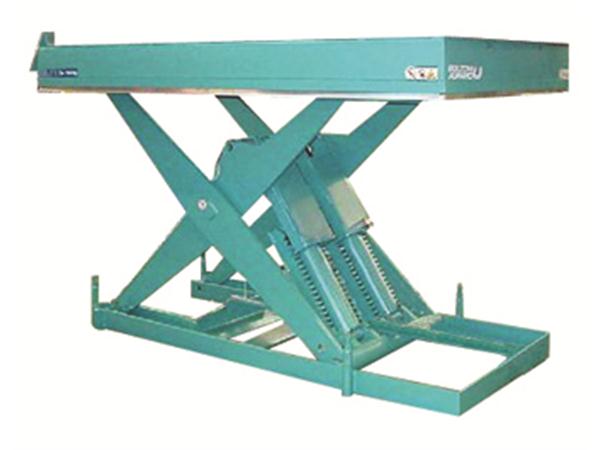

During maintenance of forklift trucks, the access is complex and often physically painful for the operators.This lift table model is specially designed to optimize the Process of maintenance of forklifts and to provide optimum ergonomic workstation to improve the working conditions of the operator.Therefore it represent an investment oriented to efficiency and productivity for maintenance and assembly of forklift trucks.The lift table positioned in floor pit is provided with flaps on the front side and with safety wheels rear stop system and allow to the operator to position the forklift on the table and lift it in safety.Main features:

• This type of lifting table, improves the ergonomics of the workplace by increasing efficiency and productivity of the operator.
• The variable height provides the operator with an ergonomic height and freedom of movement for the maintenance of the forklift.
• The lock system is rackwork type. Unlock operations through two pneumatic cylinders are provided for the unlock operations.

Technical Data

1A-LS

Further technical features:

• Aluminium safety bar, stopping descent of the platform on contact with obstructions.
• Safety clearance between scissors to prevent trapping during operation.
• Single acting hydraulic cylinders with drainage.
• Safety check valve to stop the lift table lowering in the unlikely event of a hose break.SS
• Self lubricating bearings on pivot points.
• Push button control box with emergency stop.
• Hydraulic power pack inside the table provided with relief valve against overloading and compensated flow valve for controlled lowering speed.
• Protection against overloading.
• Upper travel limit switch.
• Low voltage (24V) control box with 3 buttons for an independent operation of the platform tilting (up- down emergency stop – up-down ).
• Electrical equipment controlled by electronic system, with low voltage transformer and thermal overload protection.
• Removable lifting eyes to facilitate handling and lift table installation.
• Colour ral 5018.

Bolzoni Auramo fork lift truck service lifts are CE marked and comply with Machinery Directive (2006/42/CE) and Safety standards EN 1493.
