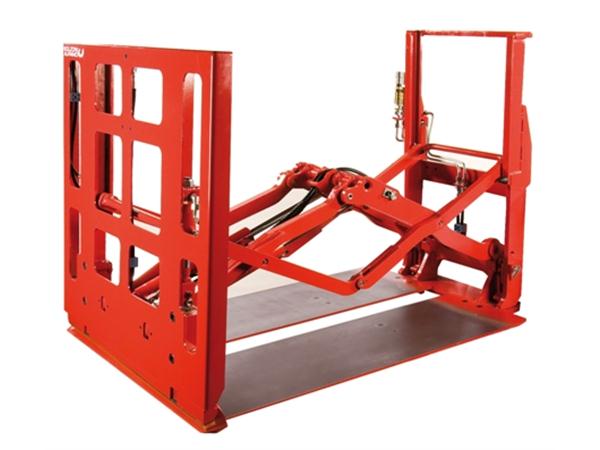

Fork Mounted Load Push

  • Possibility to convert a conventional fork lift truck into a specially equipped machine to handle loads on slip sheet.
  • Converting time: one minute.
  • The driver enters the forks under the platens, tilt the mast forward, lift the carriage up, engage the upper hooks, lock the lower mounting hooks in place and connect the quick change hydraulic couplers.
  • Different from the push/pull model, because it is without the gripper jaw. The plattens have to be directly slipped under the load.
  • Maximum visibility.
  • High tensile steel platens
  • Quick and easily mounts over truck forks.
  • Proven, dependable push linkage – tilting push plate standard.

Technical Data

Easy Rider Load-Push

LZ16A6X 1600 600 380×1220 860 1000X1010 195 855 235 300 310
LZ16B6X 1600 600 380×1220 994 1000X1010 195 855 235 300 310
LZ20A6X 2000 600 380×1220 860 1000X1010 195 855 240 305 320
LZ20B6X 2000 600 380×1220 994 1000X1010 195 855 240 305 320

Pressure relief valve

adjustable bolt-on platens, to fit two different overall widths.

Important: Easy Rider must be hooked on the carriage and supported by forks of suitable capacity
