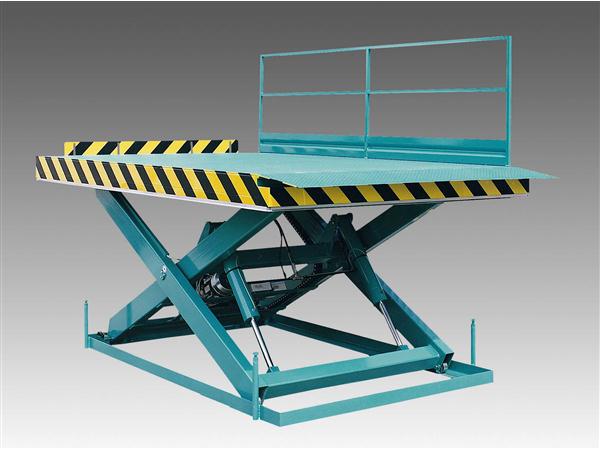

Loading Bay Lift Table 1T
- Used to load and unload vehicles by pedestrian or fork lift trucks without a loading deck
- Designed to operate with maximum safety for off-centred crossing loads
- Safety tread top platform surface
- Max. 15 cycles per hour, one shift a day
- Upper limit switch
- Check valve on each cylinder for higher stability
- Self lubricating bushings on pivot points
- Hydraulic power pack inside the table provided with relief valve against overloading and compensated flow valve for controlled lowering speed
- Electric equipment controlled by electronic system, with transformer and thermal protection
- Wide range of option available such us wheel stop, goal post, safety handrails, manual bridge plate.
Technical Data
Serie 1T
A1 40 T000 | 4000 | 1600 | 2500X2000 | 500 | 4 | 2 | 110 |
A1 40 T010 | 4000 | 1600 | 3000X2000 | 500 | 4 | 2 | 110 |
A1 40 T020 | 4000 | 1800 | 3000X2000 | 550 | 4 | 2 | 110 |
A1 40 T030 | 4000 | 1800 | 3000X2400 | 550 | 4 | 2 | 110 |
A1 40 T040 | 4000 | 1800 | 3500X2400 | 550 | 4 | 2 | 110 |
A1 40 T050 | 4000 | 2000 | 3500X2000 | 550 | 4 | 2 | 110 |
A1 40 T060 | 4000 | 2000 | 3500X2400 | 550 | 4 | 2 | 110 |
A1 40 T070 | 4000 | 2000 | 4000X2400 | 550 | 4 | 2 | 110 |
A1 60 T000 | 6000 | 1500 | 2500X2000 | 550 | 4 | 2 | 120 |
A1 60 T010 | 6000 | 1800 | 3000X2000 | 600 | 4 | 2 | 120 |
A1 60 T020 | 6000 | 1800 | 3000X2400 | 600 | 4 | 2 | 120 |
A1 60 T030 | 6000 | 1800 | 3500X2400 | 600 | 4 | 2 | 120 |
A1 60 T050 | 6000 | 2000 | 3500X2000 | 600 | 4 | 2 | 120 |
A1 60 T060 | 6000 | 2000 | 3500X2400 | 600 | 4 | 2 | 120 |
A1 60 T070 | 6000 | 2000 | 4000X2400 | 600 | 4 | 2 | 120 |
A1 80 T000 | 8000 | 1500 | 2500X2000 | 600 | 4 | 2 | 130 |
A1 80 T010 | 8000 | 1800 | 3000X2000 | 650 | 4 | 2 | 130 |
A1 80 T020 | 8000 | 1800 | 3000X2400 | 650 | 4 | 2 | 130 |
A1 80 T030 | 8000 | 1800 | 3500X2400 | 650 | 4 | 2 | 130 |
A1 80 T050 | 8000 | 2000 | 3500X2000 | 650 | 4 | 2 | 130 |
A1 80 T060 | 8000 | 2000 | 3500X2400 | 650 | 4 | 2 | 130 |
A1 80 T070 | 8000 | 2000 | 4000X2400 | 650 | 4 | 2 | 130 |
A1 A0 T000 | 10000 | 1500 | 2500X2000 | 650 | 5,5 | 2 | 140 |
A1 A0 T050 | 10000 | 2000 | 3500X2000 | 700 | 5,5 | 2 | 140 |
A1 A0 T060 | 10000 | 2000 | 3500X2400 | 700 | 5,5 | 2 | 140 |
A1 A0 T070 | 10000 | 2000 | 4000X2400 | 700 | 5,5 | 2 | 140 |
Loading Lift TablesType 1TSingle scissor for loading by forklift truck
