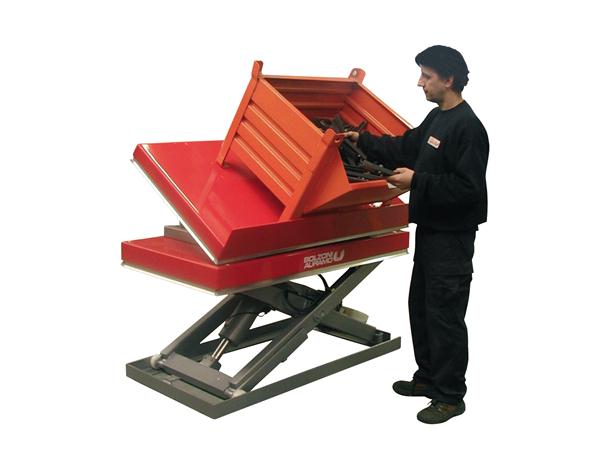

Tilting Top Platform 1E-T
The tilting platform, allowing 35° tilt, in one direction, is particularly useful during operation where small parts need to be picked out from container raised by the platform and can also find extensive use on assembly lines (car industry and components in general).
Technical Data
Ergo-Lift Tilting 1E-T
A1.05.E01T0 | 300 | 800 | 1250X800 | 360 | 0,55 | 1 | 60 |
A1.05.E02T0 | 300 | 800 | 1250X1000 | 360 | 0,55 | 1 | 60 |
A1.05.E03T0 | 300 | 1000 | 1500X800 | 380 | 0,55 | 1 | 60 |
A1.05.E04T0 | 300 | 1000 | 1500X1000 | 380 | 0,55 | 1 | 60 |
A1.05.E05T0 | 300 | 1200 | 1800X800 | 400 | 0,75 | 1 | 60 |
A1.05.E06T0 | 300 | 1200 | 1800X1000 | 400 | 0,75 | 1 | 60 |
A1.10.E01T0 | 800 | 800 | 1250X800 | 360 | 0,55 | 2 | 60 |
A1.10.E02T0 | 800 | 800 | 1250X1000 | 360 | 0,55 | 2 | 60 |
A1.10.E03T0 | 800 | 1000 | 1500X800 | 380 | 0,55 | 2 | 60 |
A1.10.E04T0 | 800 | 1000 | 1500X1000 | 380 | 0,55 | 2 | 60 |
A1.10.E05T0 | 800 | 1200 | 1800X800 | 400 | 0,75 | 2 | 60 |
A1.10.E06T0 | 800 | 1200 | 1800X1000 | 400 | 0,75 | 2 | 60 |
A1.10.E07T0 | 800 | 1600 | 2250 X 800 | 440 | 1,1 | 2 | 90 |
A1.10.E08T0 | 800 | 1600 | 2250 x 1000 | 440 | 1,1 | 2 | 90 |
A1.15.E01T0 | 1300 | 800 | 1350X800 | 410 | 0,75 | 1 | 90 |
A1.15.E02T0 | 1300 | 800 | 1350X1000 | 410 | 0,75 | 1 | 90 |
A1.15.E03T0 | 1300 | 950 | 1500X800 | 420 | 0,75 | 1 | 90 |
A1.15.E04T0 | 1300 | 950 | 1500X1000 | 420 | 0,75 | 1 | 90 |
A1.15.E05T0 | 1300 | 1200 | 1800X800 | 430 | 1,1 | 1 | 90 |
A1.15.E06T0 | 1300 | 1200 | 1800X1000 | 430 | 1,1 | 1 | 90 |
A1.20.E01T0 | 1500 | 800 | 1350X800 | 410 | 1,1* | 1 | 110 |
A1.20.E02T0 | 1500 | 800 | 1350X1000 | 410 | 1,1* | 1 | 110 |
A1.20.E03T0 | 1500 | 950 | 1500X800 | 420 | 1,1 | 1 | 110 |
A1.20.E04T0 | 1500 | 950 | 1500X1000 | 420 | 1,1 | 1 | 110 |
A1.20.E05T0 | 1500 | 1200 | 1800X800 | 430 | 1,1 | 1 | 110 |
A1.20.E06T0 | 1500 | 1200 | 1800X1000 | 430 | 1,1 | 1 | 110 |
* External power pack.ATTENTION: For pit installation please contact Bolzoni Auramo.
Further technical features
- Max. 20 cycles per hour, one shift a day
- Top platform smooth surface
- Single acting hydraulic cylinders with drainage
- Upper and lower travel limited by mechanical
- Self lubricating bearings on pivot points
- Safety clearance between scissors to prevent trapping during operation
- Hydraulic power pack inside the table provided with relief valve against overloading and compensated _ow valve for controlled lowering speed
- Safety check valve to stop the lift table lowering in the unlikely event of a hose breakage
- Removable lifting eyes to facilitate handling and lift table installation
