Jumbo – 180° rotation – RA-NJ-3

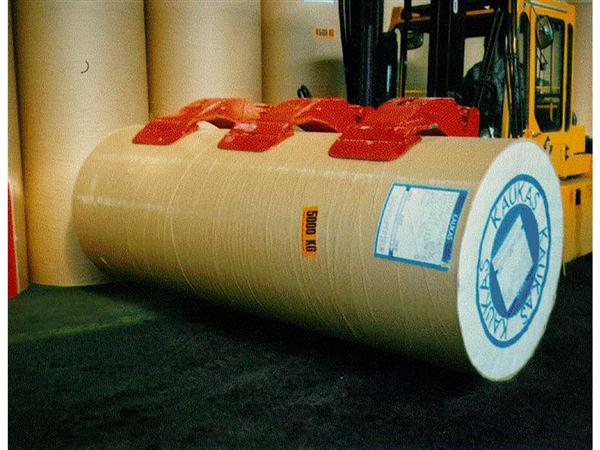

- Rotating paper roll clamp for vertical and horizontal roll handling.
- Three split long arms enable the handling of one large roll or 2-3 rolls of different diameters.
- Pivoting arm movement, short and long arms. Several contact pad options in standard series.
- 180-degree rotation, with hydraulic cushioning in the vertical positions, eliminates the risk of edge damage.
Technical Data
RA-NJ-3
RA-350-NJ-3 | 3500 | 800 | 250-1600 | 2040 | 1580 | 380 | 415 | 365 | 240×400 | 400 | 610 | 3/4A |
RA-450-NJ-3 | 4500 | 650 | 250-1300 | 2040 | 1500 | 340 | 415 | 365 | 240×400 | 400 | 610 | 3/4A |
RA-550-NJ-3 | 5500 | 900 | 250-1800 | 2340 | 2130 | 470 | 489 | 385 | 280×500 | 400 | 755 | 4A |
RA-580-NJ-3 | 5800 | 800 | 250-1600 | 2340 | 2060 | 430 | 489 | 385 | 280×500 | 400 | 755 | 4A |
RA-600-NLJ-3 | 6000 | 750 | 500-1500 | 2340 | 2040 | 420 | 489 | 385 | 280×500 | 400 | 755 | 4A |
RA-600-NJ-3 | 6000 | 650 | 250-1300 | 2340 | 1980 | 400 | 489 | 385 | 280×500 | 400 | 755 | 4A |
RA-800-NJ-3 | 8000 | 750 | 800-1500 | 2340 | 2560 | 440 | 489 | 435 | 280×500 | 400 | 755 | (1) |
(1) | Special mounting required. |
Two hydraulic functions. Special roll ranges on request.
Standard contact pads: cast pad with high-friction surface. Contact pad options: steel-sprayed surface, rubber-faced, polyurethane-faced, or flexible.
Note: For bilge handling, 5-degree forward tilt on upright is required. For 0-degree tilt, special arms are available.
Más información sobre este producto consulte en: http://www.bolzoni-auramo.com/Lift-Truck-Attachments/Paper-roll-clamps/Jumbo-rolls/index.aspx?m=124&idc=33
